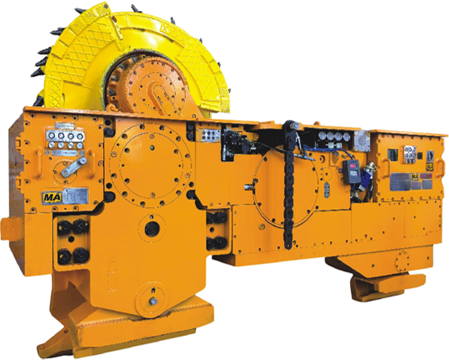

Installed Power (kW): 200+50;250+50;300+50
Mining Height (m): 2.0~2.56;2.3~ 3.12;2.6~3.58
Coal Seam Inclination Angle (°): ≤35
Coal Hardness (f) : ≤3.5
Surface Height (mm): 1451;1746;1985
Minimum Dinting Depth (mm): 406;486;
Draught Speed (m/min): 0~9.0-14.9
Draught Force (kN): 300/180
Draught Form: AC Variable Frequency Conversion Velocity, Gear/Pin Rack Driving
Drum Diameter (mm): Ф1600, Ф1800;Ф1800, Ф2000;Ф2000, Ф2240
Drum Speed (r/min): 38;34
Effective Cutting Depth (mm): 630, 800
Supply Voltage (V): 1140
Operation Mode: Remote Control, Manual Control of Central and Both Ends Operation Stations
Dust Suppression Mode: Internal and External Spray
Design Production Capacity (t/h): 1000;1200;1400
Maximum Non-detachable Dimension (mm): 3200x1070x850
Maximum Non-detachable Weight (kg) : 5000
Total Weight (t): 19;20;22
Match Feeding Machine Model: SGZ730, SGZ764
Scope of use Short body length, the ranging arm can rotate 310 °, suitable for shortwall working faces with various mining heights.
High adaptability Serialized design, a wide range of mining heights, can be matched with scraper conveyors with different groove widths.
New material The shell adopts high-strength alloy cast steel quenching and tempering treatment with independent intellectual property rights, greatly improving the mechanical performance indicators of the shell.
High wear resistance The guided and flat skates are made of special-grade steel material with independent intellectual property rights, with high wear resistance.
High configuration The main components adopt imported mature and high-quality products, with high reliability.
Modularization The entire machine and components adopt modular designs, which are convenient for maintenance and repair.
Intelligence The machine is equipped with advanced control and protection functions, video monitoring, a self-diagnosis system, intelligent planning cutting, and automatic triangular coal cutting functions.
Remote communication The machine has multiple remote communication methods
