Product Center
Products Excavation Equipment

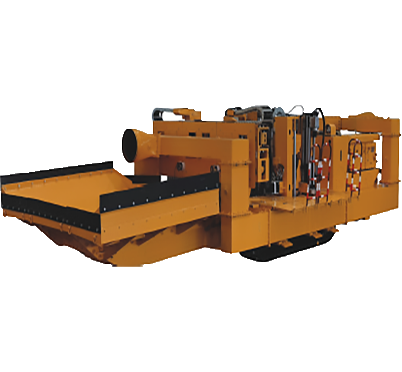

MZHB4-650/22 Anchor Rod Loading Machine
MZHB4-650/22 Anchor Rod Loading Machine

Product Parameter

Outline Dimension (m): 10.8x3.5x2.6

Rock Bolting Adaptive Height (m): 2.9~3.5

Ground Pressure (MPa): 0.14

Supply Voltage (V): AC1140/660

Roof Bolter Number : 4

Total Weight (t): 48

Pump Station Motor (kW): 132

Rock Bolting Adaptive Height (m): 4.8~6.0

Roof Bolter Torque (N·m): 300

Roof Bolter Speed (r/min) : 500

Roof Bolter Stroke (mm): 1.9/1.3

Product Advantages

Integration The entire machine has a compact structure, integrating transporting, rock bolting, self-propelled functions, etc., equipped with 4 roofbolter of high efficiency.

Safety The rock bolting mechanism is interlocked with a walking mechanism to protect the safety of operators and equipment.

Efficient The on-board hydraulic roof bolter is of high torque, high rotation speed, and large thrust. The roof bolter is equipped with a “one-click drilling” function, with high speed and efficiency of drilling and installation.

Intelligence The machine is equipped with laser displacement sensors to monitor real-time position data of the roadheader, achieving seamless connection with the roadheader transportation system.

Convenient The roof bolter is equipped with a hydraulic clamp, enabling quick dismantling and pulling of the drill rod, which is convenient and effort-saving, significantly reducing the labor intensity of workers.

Reduce manpower During rock bolting operations, no manual support is required, and each drilling rig is operated by only one person, greatly reducing head-on personnel number during excavation.

Reliable The roof bolter adopts a cylindrical rail structure, with built-in hydraulic pipes, which is easy to maintain and reliable in performance.
